Basic Matroid Theory and Infinite Extensions

Prerequisites:

• Linear Algebra: Vector spaces, basis, dimension, and linear independence.
• Graph Theory: Graphs, connected components, cycles, and spanning trees.
• Set Theory: Basic cardinality and Zorn’s Lemma (for the infinite section).

In this post, we will discuss the basics of Matroid Theory. While often taught merely as a theoretical framework for Greedy Algorithms, matroids are a rich combinatorial structure in their own right. We will start with the finite foundations and then explore how these definitions behave (and break) when extended to the infinite case.

Motivation

Vector Spaces

Many results in Linear Algebra rely on the highly convenient tool of a basis. In every introductory course, one learns that while a vector space may have many bases, they are all of the same size. This fact allows us to define the dimension of vector spaces.

The proof of this fact relies on a crucial observation:

Reasoning: If not, $B\subseteq \mathrm{Span}(A)$, which implies that the dimension of the space spanned by $B$ is at most $|A|$. Since $|A| < |B|$, this contradicts the linear independence of $B$. Thus, there must exist $v\in B$ which is linearly independent from $A$, and we can add it to $A$ to form a larger independent set.

Graphs

Graph algorithms often rely on the existence of a Spanning Tree (or a spanning forest if the graph is disconnected). For a graph $G=(V,E)$ with $n$ vertices and $c$ connected components, any spanning forest must have exactly $n-c$ edges.

We can prove this using a similar observation:

Reasoning: If no such edge existed, then the vertices touched by edges in $T$ ($V_{T}$) would be “covered” connectivity-wise by edges in $S$. Since $|S|<|T|$ and both are forests, a counting argument on connected components leads to a contradiction. We conclude that $e$ can be added to $S$ to obtain a bigger forest.

Notice the pattern: in both cases, there is a fundamental property allowing us to “exchange” elements from a larger independent set into a smaller one.

Matroids

Matroids are the combinatorial structure that captures this exact notion of “independence”, abstracting away the specific details of vectors or edges.

For now, we assume the ground set and independent sets are finite. We will discuss the infinite case later. First, let us prove that this structure forces all maximal independent sets to have the same size.

Proof. Suppose otherwise, i.e., that $|A|>|B|$ (we can switch roles if the opposite holds). By the Exchange property, there exists $a\in A\setminus B$ such that $B\cup \lbrace a\rbrace \in \mathcal{I}$. This contradicts the maximality of $B$. $\blacksquare$

This lemma implies that the following concept is well-defined:

Examples

1. The Vector Matroid: For a vector space $V$, let $S\subset V$ be a finite set of vectors, and let $\mathcal{I}$ be the collection of linearly independent subsets of $S$.
2. The Graphic Matroid: For a graph $G=(V,E)$, let $S=E$ and define $\mathcal{I}$ as the collection of edge sets that induce a forest (contain no cycles).

Circuits

Circuits act as minimal proofs of dependence:

1. In the vector matroid, if $v_3 = v_1 + v_2$, then $\lbrace v_1, v_2, v_3\rbrace $ is a circuit. Note that unlike bases, circuits are not necessarily of the same size. A set $\lbrace v, 2v\rbrace $ is a circuit of size 2, while $\lbrace v_1, v_2, v_1+v_2\rbrace $ is a circuit of size 3.
2. In the graphic matroid, a circuit corresponds exactly to a simple cycle.

The Dual Matroid

We use the prefix “co-” for dual terms: dual bases are cobases, dual independent sets are coindependent, and dual circuits are cocircuits. Since a basis $A$ of $\mathcal{M}^{*}$ satisfies $S\setminus A=B$ for a basis $B$ of $\mathcal{M}$, the rank is given by $r(\mathcal{M}^{*})=|S|-r(\mathcal{M})$.

Proof. The fact that $\mathcal{I}^{*}$ is non-empty and hereditary is straightforward. We focus on the Exchange Property. Let $A,B\in \mathcal{I}^{*}$ with $|A|>|B|$. We must show there is $a\in A\setminus B$ such that $B\cup \lbrace a\rbrace \in \mathcal{I}^{*}$, i.e., that $S\setminus (B\cup \lbrace a\rbrace )$ contains a basis of $\mathcal{M}$.

Let $C,D$ be bases of $\mathcal{M}$ such that $C\subseteq S\setminus B$ and $D\subseteq S\setminus A$. Note that $D\setminus B\in \mathcal{I}$ (hereditary), so there exists a basis $E$ such that $D\setminus B\subseteq E$. We claim $A\setminus B \not\subset E$. Assume the converse ($A\setminus B\subset E$). Then: $$|D|= |D\cap B|+ |D\setminus B| \overset{D\subseteq S\setminus A}{\le} |B\setminus A|+ |D\setminus B| \overset{|A|>|B|}{<} |A\setminus B|+ |D\setminus B|\le |E|$$ (The last inequality holds because $A \cap D = \emptyset$ and $A\setminus B, D\setminus B\subseteq E$ by hypothesis). This implies $|D| < |E|$, contradicting that all bases have the same size.

We conclude $A\setminus B \not\subset E$, hence there exists $a\in (A\setminus B) \setminus E$. Thus $E \subseteq S \setminus (B \cup \lbrace a\rbrace )$, meaning $B \cup \lbrace a\rbrace \in \mathcal{I}^*$. $\blacksquare$

Dual Graph Matroid

Recall that in the graphic matroid, independent sets are forests and circuits are simple cycles. What is the dual?

• Coindependent sets are subsets $A\subset E$ whose removal leaves a spanning forest (does not break connectivity).
• Cocircuits are minimal subsets $A\subset E$ whose removal breaks connectivity in some connected component.

If $G$ is connected, cocircuits are exactly the minimal cuts of the graph.

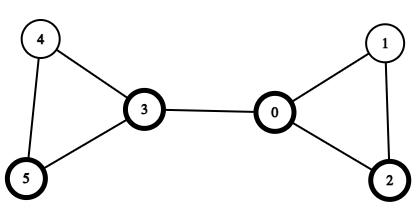

Example: Consider the following graph:

1. $\lbrace (5,4),(4,3)\rbrace $ (Isolating vertex 4)
2. $\lbrace (3,0)\rbrace $ (A bridge)

The Infinite Case

In linear algebra, the standard definition of linear independence applies to finite sets. To handle infinite dimensions, we extend the definition:

Using Zorn’s lemma, one can show every vector space has a basis. However, this algebraic basis is often less useful than topological bases (like Hilbert bases) which allow for convergence arguments.

We can attempt to define infinite matroids similarly:

A consequence of this definition is that circuits must be finite. If a circuit were infinite, every finite subset of it would be independent (by minimality), which would make the whole set independent by our definition—a contradiction.

I turns out that this definition, while appealing for its simplicity, is not very useful, because certain concepts like that of the dual matroid fail to translate to the infinite case. We will show this with the next canonical example.

The Infinite Ladder Failure

Let’s see where this definition breaks down. Consider the Ladder Graph: $$G=(V,E), \quad V=\mathbb{Z}\times\lbrace 0,1\rbrace $$ $$E = E_1 \cup E_2$$ Where $E_1 = \lbrace \lbrace (i,x),(i+1,x)\rbrace \mid i\in\mathbb{Z}, x\in \lbrace 0,1\rbrace \rbrace$ are the “rails” and $E_2 = \lbrace \lbrace (i,0),(i,1)\rbrace \mid i\in\mathbb{Z} \rbrace $ are the “rungs”. The level (rung) is determined by $i\in \mathbb{Z}$ while the side (rail) is determined by $x\in \lbrace 0,1\rbrace$.

1. Independent Set: $A = E_1 \cup \lbrace (0,0),(0,1)\rbrace $. This is the set of all rails plus one rung. It contains no cycles, and any finite subset is a forest.
2. Coindependent Set: $B = A^c = E_2 \setminus \lbrace (0,0),(0,1)\rbrace $. This is the set of all rungs except one. Removing these leaves $A$ intact, so the graph remains connected.

Now consider the set of all rungs, $E_2$. In the dual context, $E_2$ is a cocircuit. Why?

• It is a cut: Removing all rungs disconnects the two rails.
• It is minimal: If we keep even one rung $e \in E_2$, the graph is connected.

The Problem: $E_2$ is a cocircuit, but it is infinite. We established that under our definition, circuits must be finite. Thus, the dual of this infinite matroid is not a matroid.

Finding a definition of infinite matroids that preserves duality was a long-standing open problem, resolved by Bruhn et al., 2013.

Algorithmic Applications

Matroids are intimately tied to Greedy Algorithms. An optimization algorithm is “greedy” if it constructs a solution step-by-step, making the locally optimal choice at each step with the hope of finding a global optimum.

Example (Fractional Knapsack). Given items with values and weights $\lbrace(v_{i},w_{i})\rbrace _{i=1}^{N}$ and a capacity $W$, we want to maximize total value. We are allowed to take fractions of items.

Greedy Strategy: Sort items by value-per-weight ratio. Take as much of the best item as possible, then the next, until the capacity $W$ is full.

For matroids, we can solve the following problem: Given a finite matroid $\mathcal{M}=\langle S,\mathcal{I} \rangle$ and weights $\mu:S\to \mathbb{R}_{+}$, find a basis of maximal weight.

Proof of Optimality

We first note that the algorithm returns a basis (if it returned a smaller independent set, we could extend it by the Exchange property, contradicting the logic of the loop).

Proof. Let $A$ be the solution returned by the algorithm and $B$ be an optimal basis with $\mu(B) > \mu(A)$. Write $A=(a_1, \dots, a_r)$ and $B=(b_1, \dots, b_r)$ sorted by weight. Since $\mu(B) > \mu(A)$, there must be an index $i$ such that $\mu(b_i) > \mu(a_i)$. Let $i$ be the minimal such index.

Consider the element $b_i$. Since $i$ is minimal, for all $j < i$, we have $\mu(a_j) \ge \mu(b_j) \ge \mu(b_i)$. Thus, when the algorithm considered $b_i$, it had already considered and selected $\lbrace a_1, \dots, a_{i-1}\rbrace $ (or elements with even higher weights).

By the Exchange property, since $|\lbrace b_1, \dots, b_i\rbrace | > |\lbrace a_1, \dots, a_{i-1}\rbrace |$, we can add an element from the first set to the second. Specifically, we can add $b_i$ to $\lbrace a_1, \dots, a_{i-1}\rbrace $ while maintaining independence (if $b_i$ was dependent on previous elements, it wouldn’t be in the independent set $\lbrace b_1 \dots b_i\rbrace $).

Since $b_i$ could have been added, and it has higher weight than $a_i$ (and subsequent elements), the greedy algorithm would have added it. This contradicts our assumption that the algorithm produced $A$. $\blacksquare$

Remark. The runtime is dominated by sorting ($\Omega(n \log n)$) and the $n$ calls to the Independence Oracle (checking $A \cup \lbrace s_i\rbrace \in \mathcal{I}$).

Kruskal’s Algorithm

Kruskal’s Algorithm for Minimum Spanning Trees is a classic manifestation of the Greedy Matroid Algorithm applied to the Graphic Matroid (sorting edges by weight). The independence oracle checks for cycles, which can be implemented efficiently using a Union-Find data structure.

References

1. Oxley, J. (2011). Matroid Theory .
2. Bruhn, H., Diestel, R., Kriesell, M., Pendavingh, R., & Wollan, P. (2013). Axioms for infinite matroids .
